The Doppler Effect

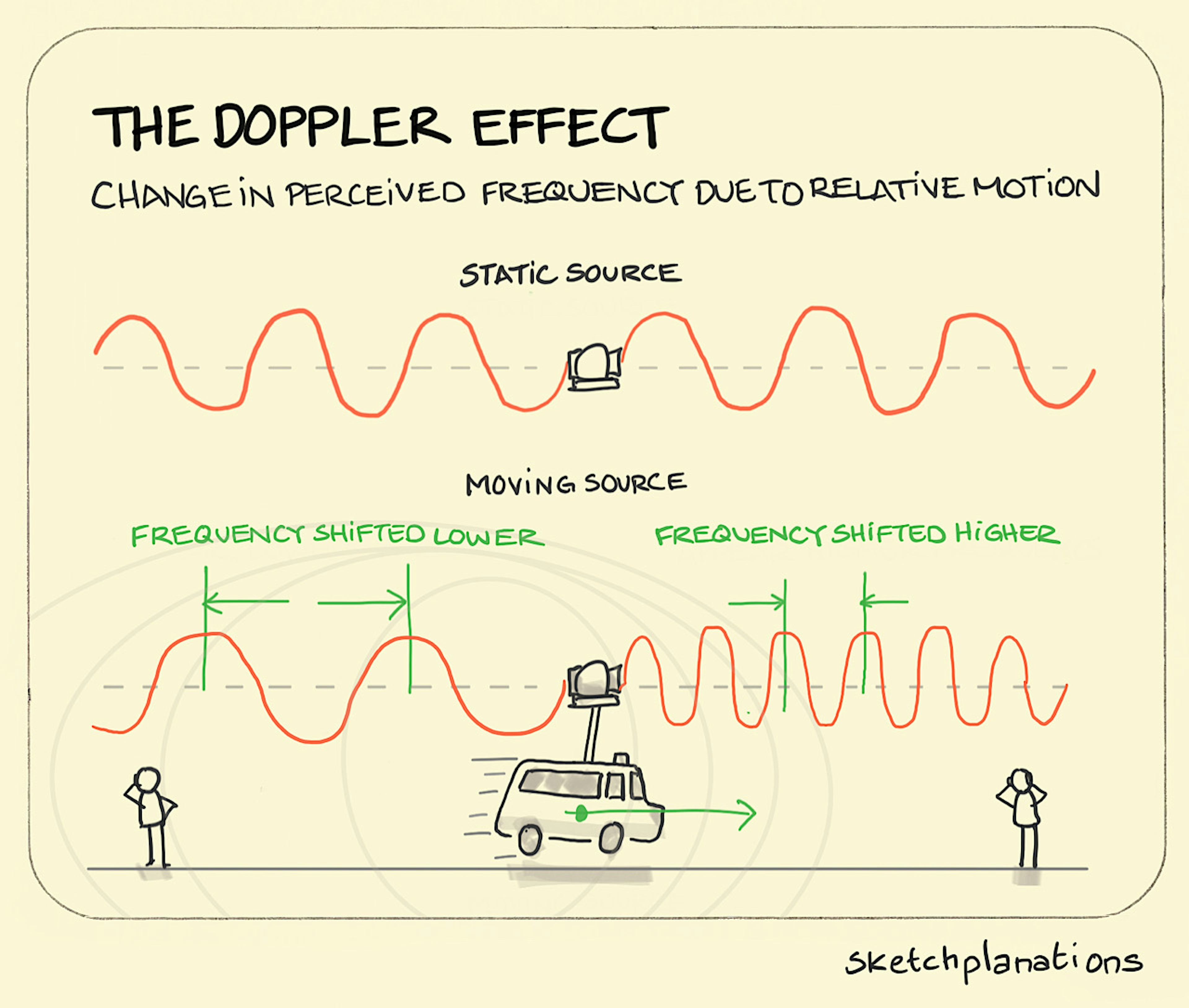

What is The Doppler effect example showing how a wave changes from a static source and gets either bunched up or spread out if you're standing in front of or behind a moving source like a siren
  • Listen

The Doppler effect is the change in frequency of a wave as its source moves relative to the observer.

The same effect that causes a siren's pitch to change as it drives past is also used to estimate blood flow with ultrasound, measure the speed of a passing car, and even determine the motion of the stars. Doppler shift-based satellite navigation was also the first operational use of a system that eventually led to GPS.

When a siren or similar sounds approach, I try to imagine the crunching of the sound waves—the vehicle seemingly chasing after its own sound—and the stretching out of the waves as it heads past and into the distance. At least it makes it less painful on the ears.

A polished version of this sketch appears in my book Big Ideas Little Pictures
